01 / OVERVIEW
Automated optical 3D measuring cell.

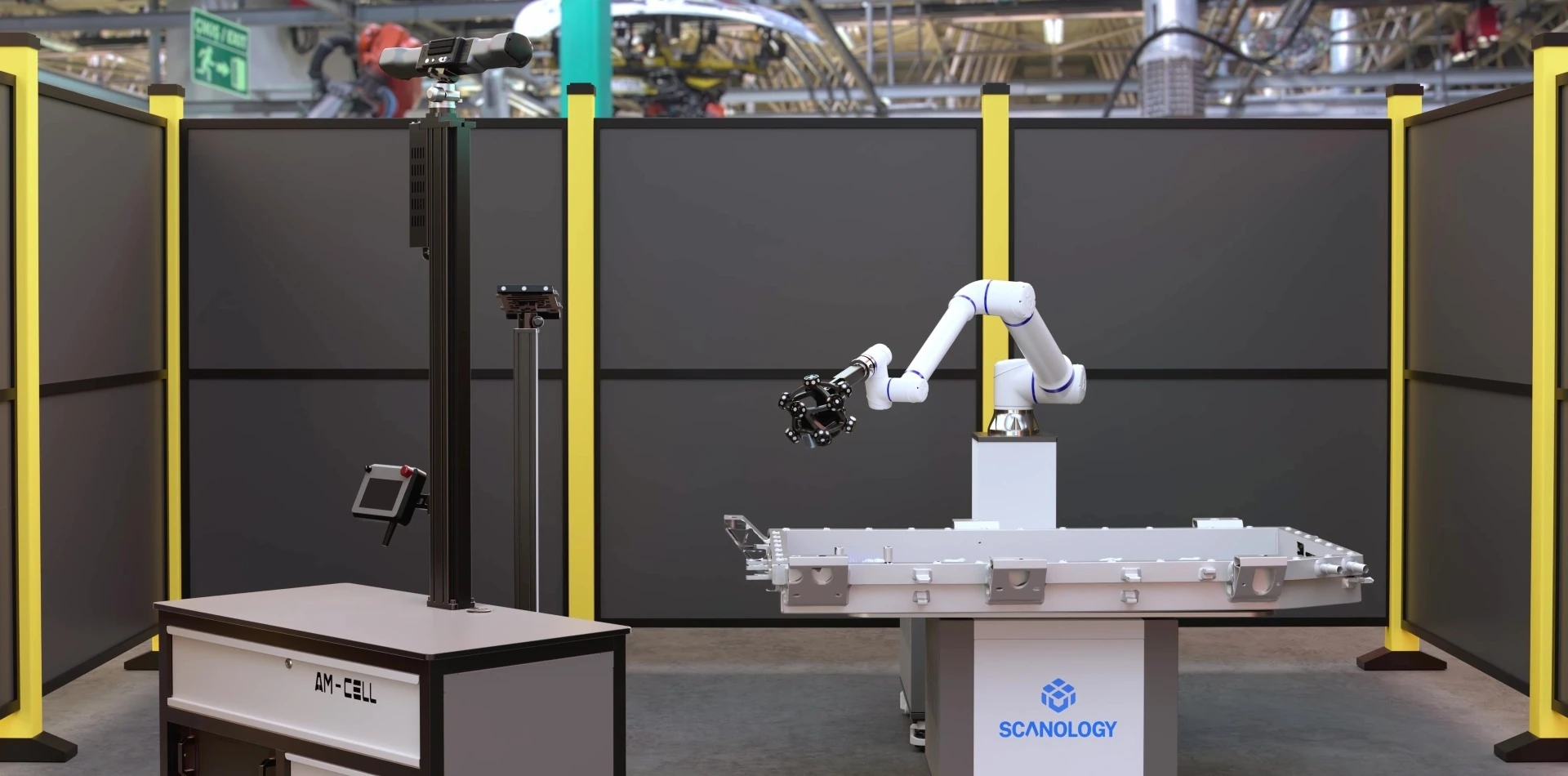

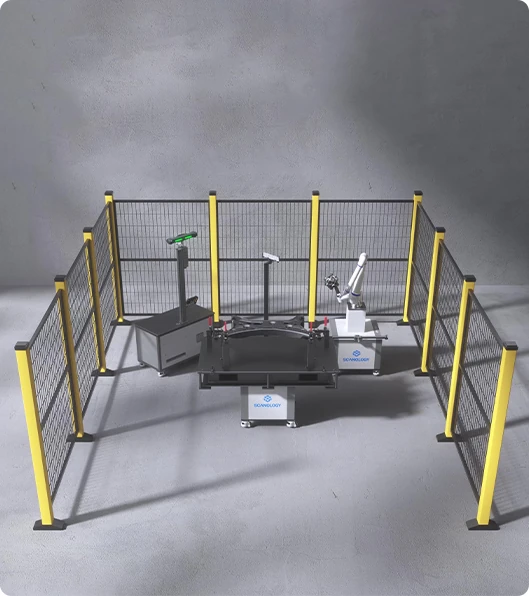

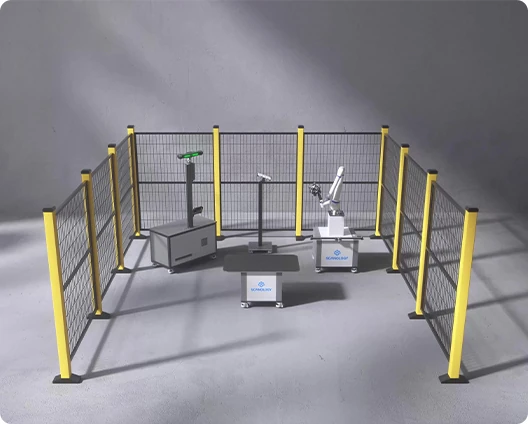

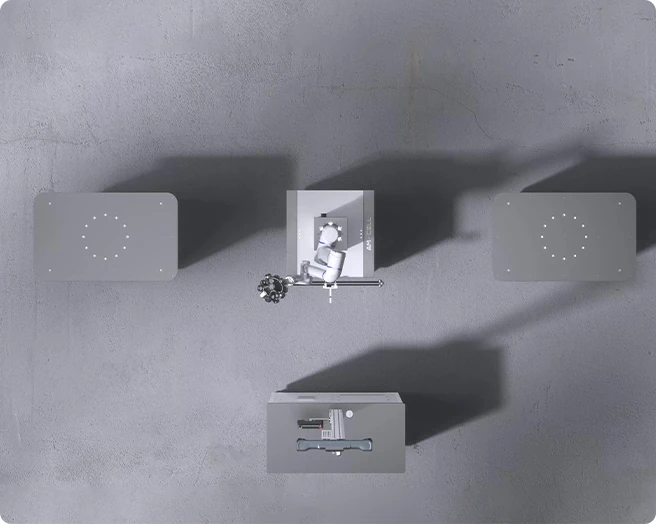

The AM-CELL C Series combines a collaborative robot, an optical 3D measuring system and a rotary table. The modular design allows adaptation of the measuring cell to the size and weight of the parts and to the requirements of the production process.

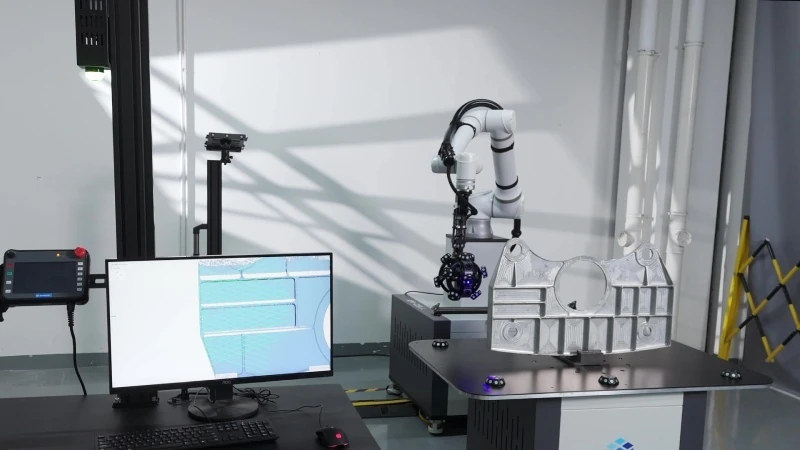

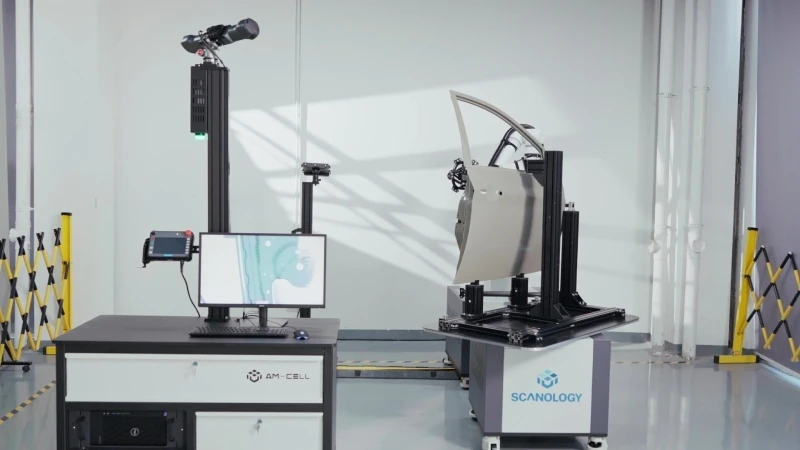

Modular build
The source lists the basic versions C13X and C18X and several rotary tables with different load capacities.

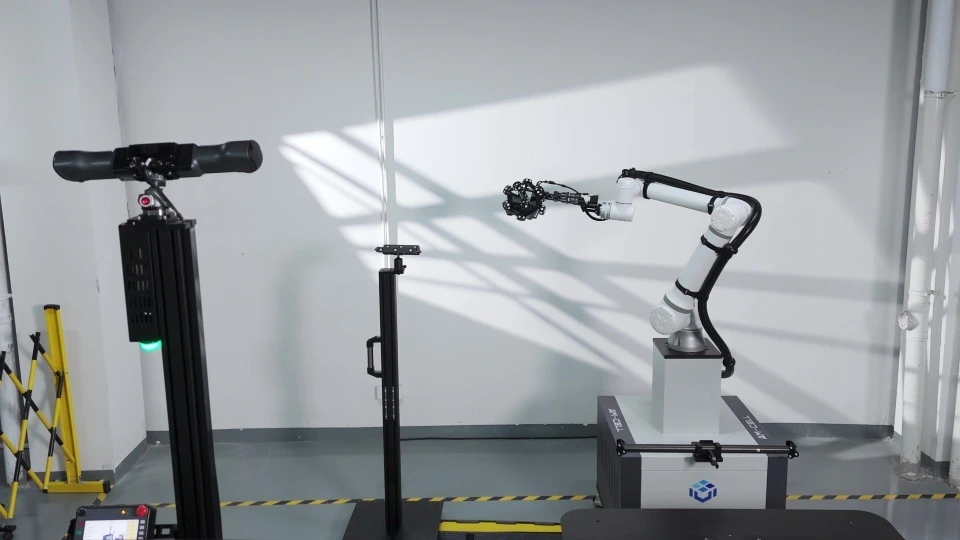

Automated sequence

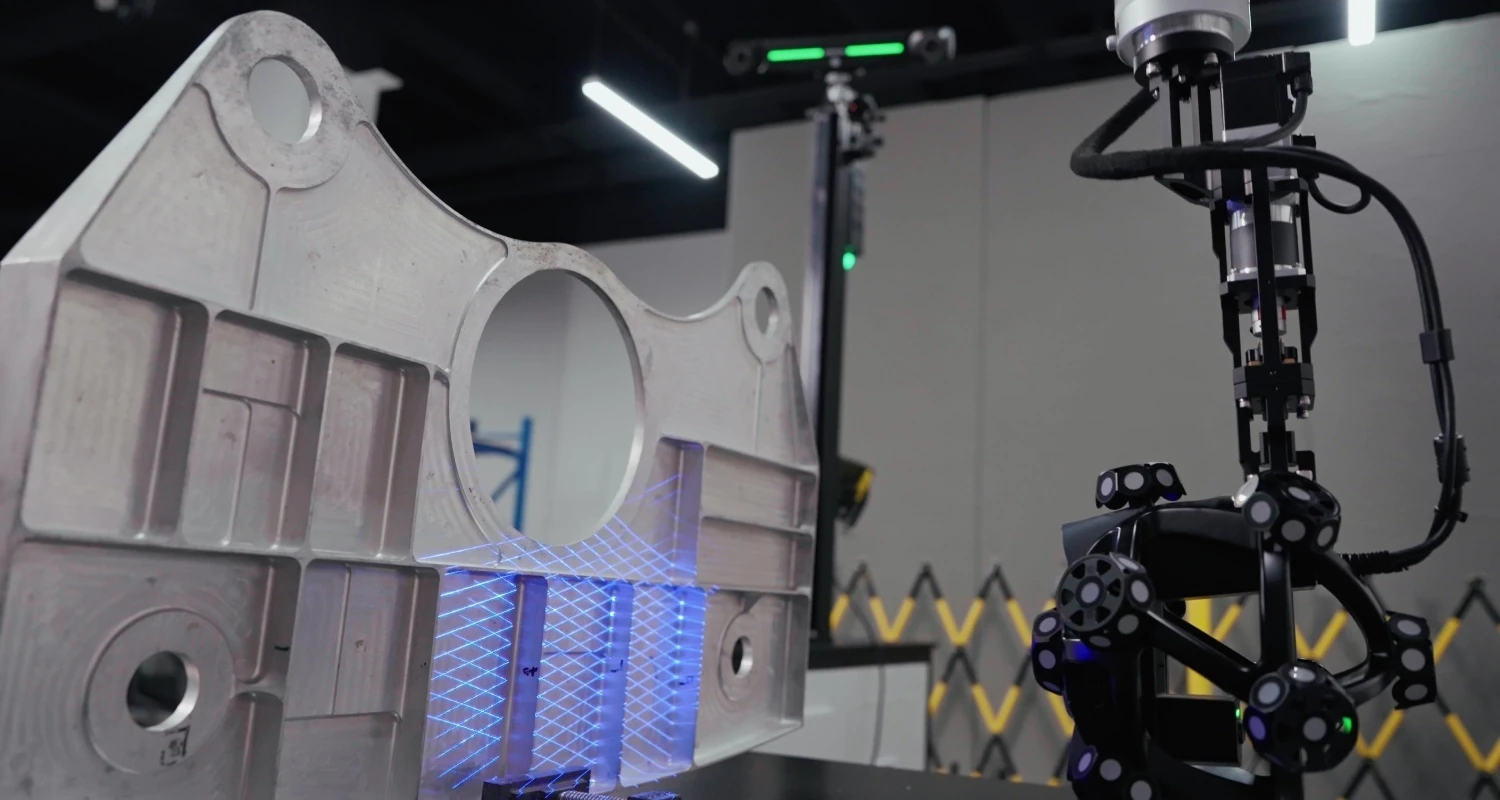

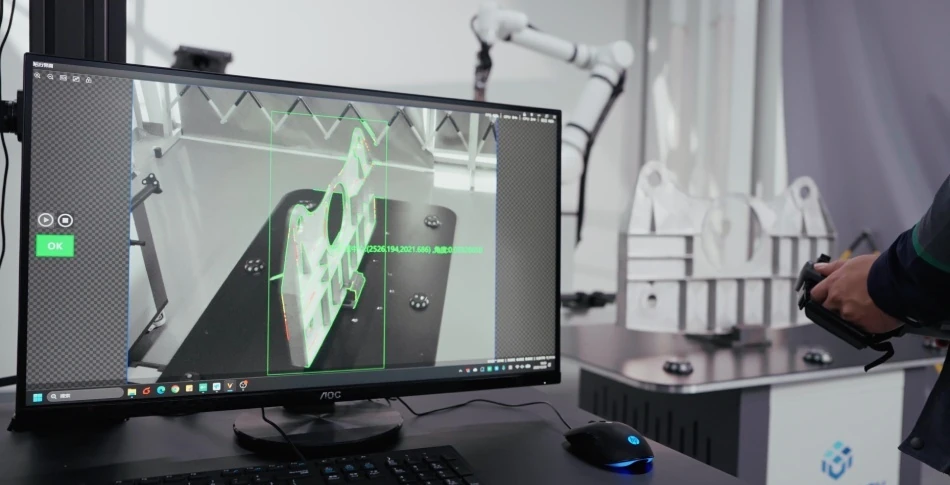

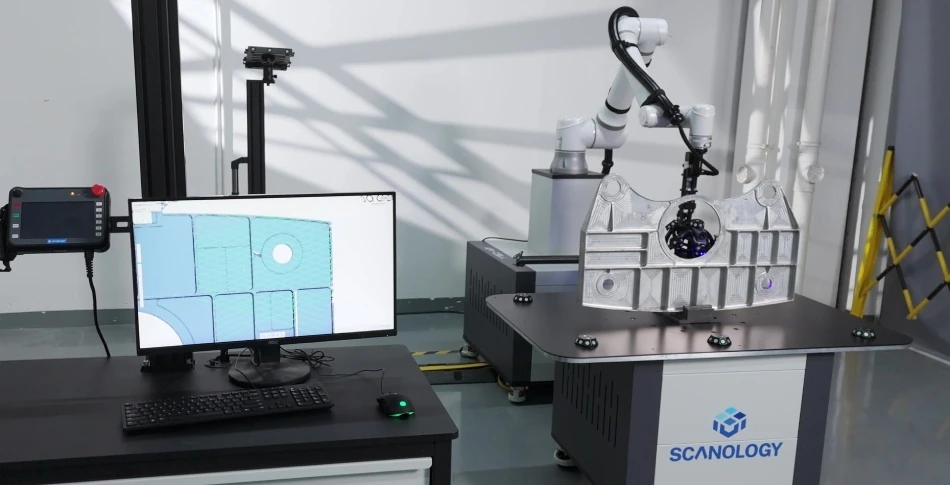

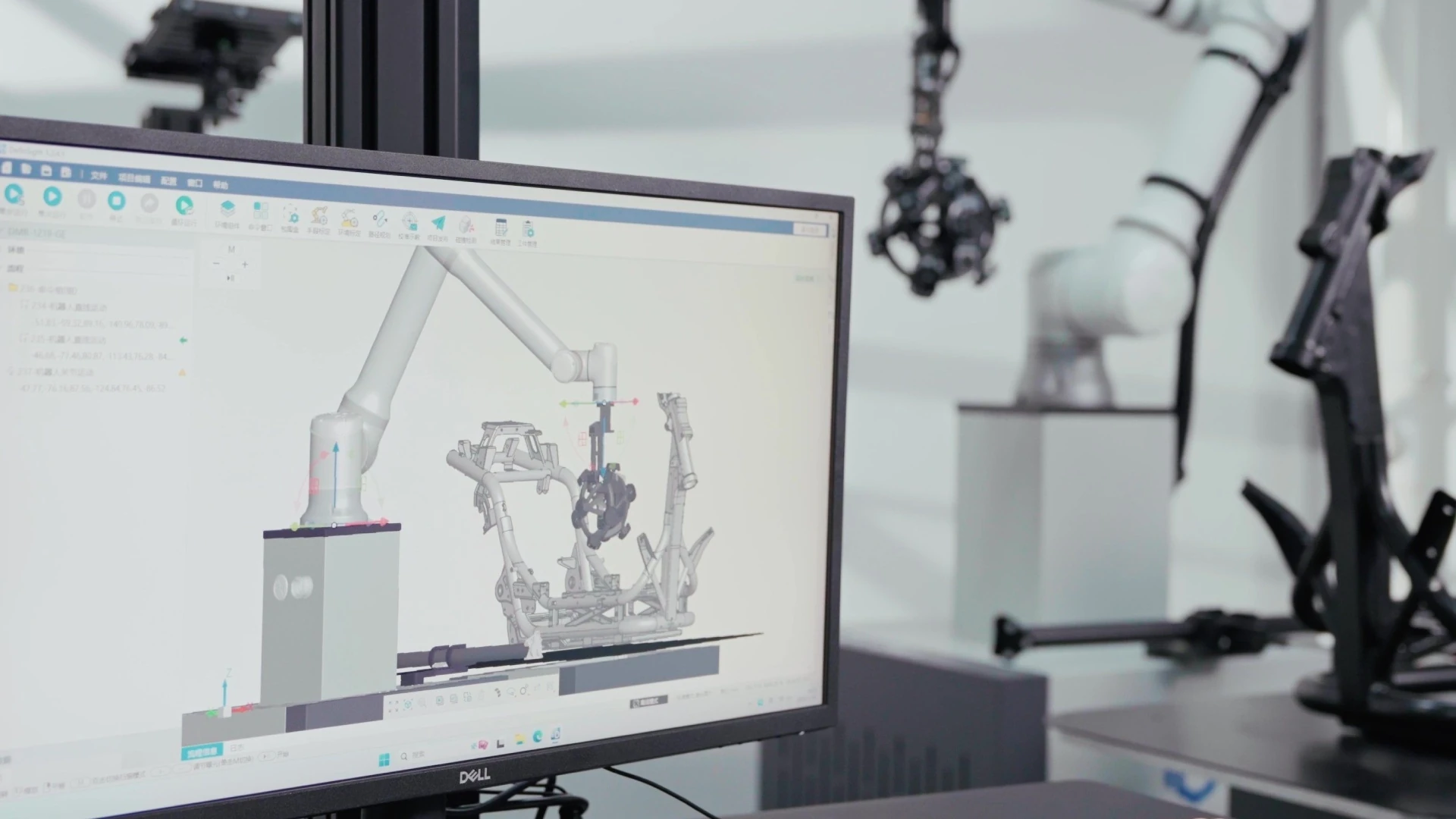

The presentation includes simulation, verification, automatic execution and process monitoring.
Equipment connectivity
Industrial communication interfaces are listed; availability depends on the version.
02 / REPEATABLE MEASURING PROCESS
Repeatable measuring process

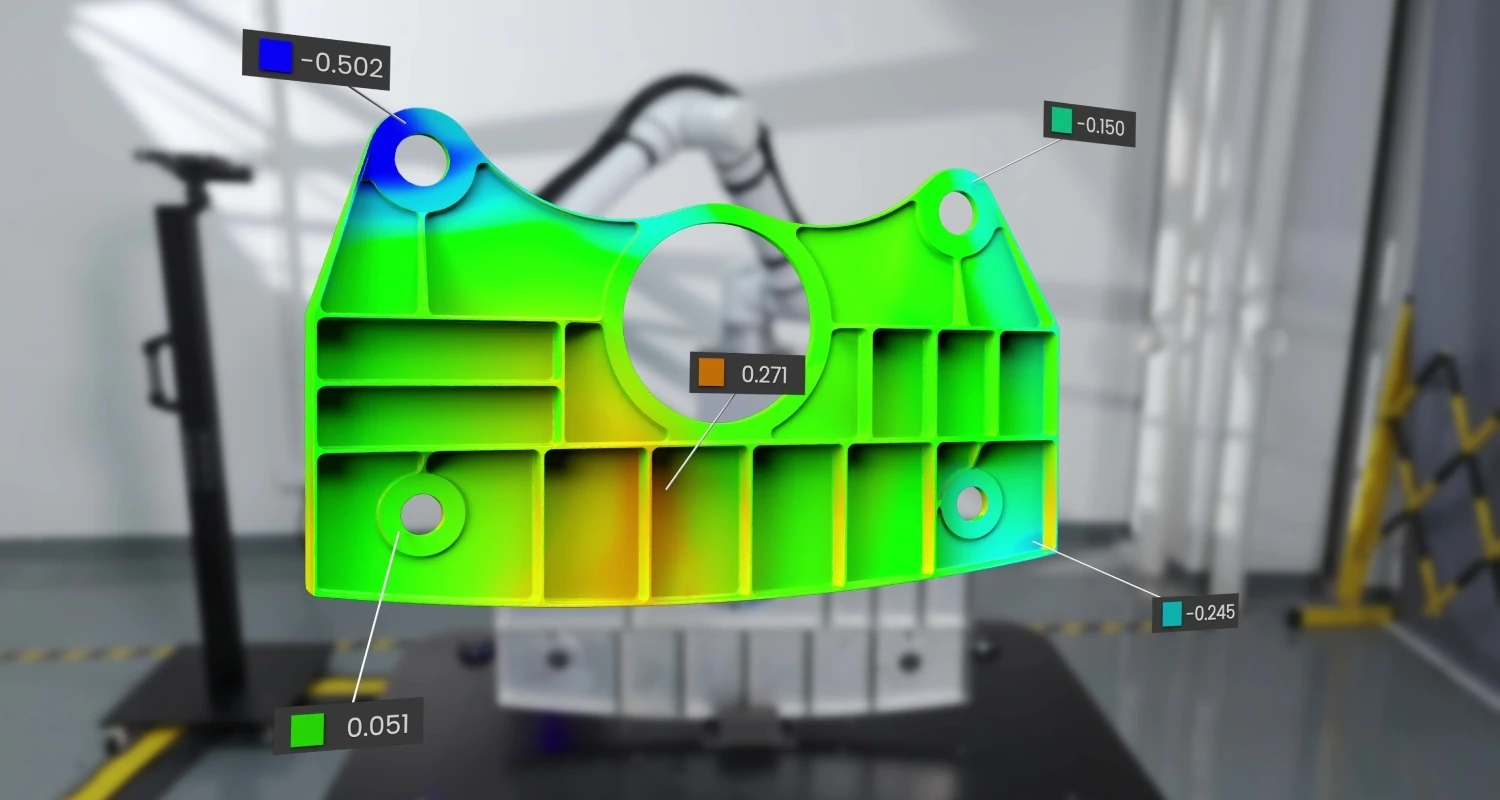

Path preparation, measurement execution and analysis are combined into an automated sequence.
03 / CELL MATCHED TO THE PART
Cell matched to the part
The robot, scanner and rotary table are selected according to the measuring task.
04 / APPLICATIONS
Where to use it.
- Automated dimensional inspection
- Repeatable measurement of series parts
- Linking optical measurements with the production process
05 / GALLERY

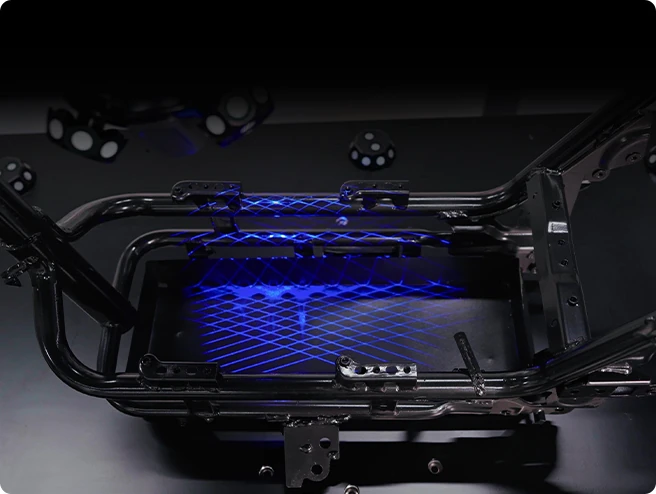

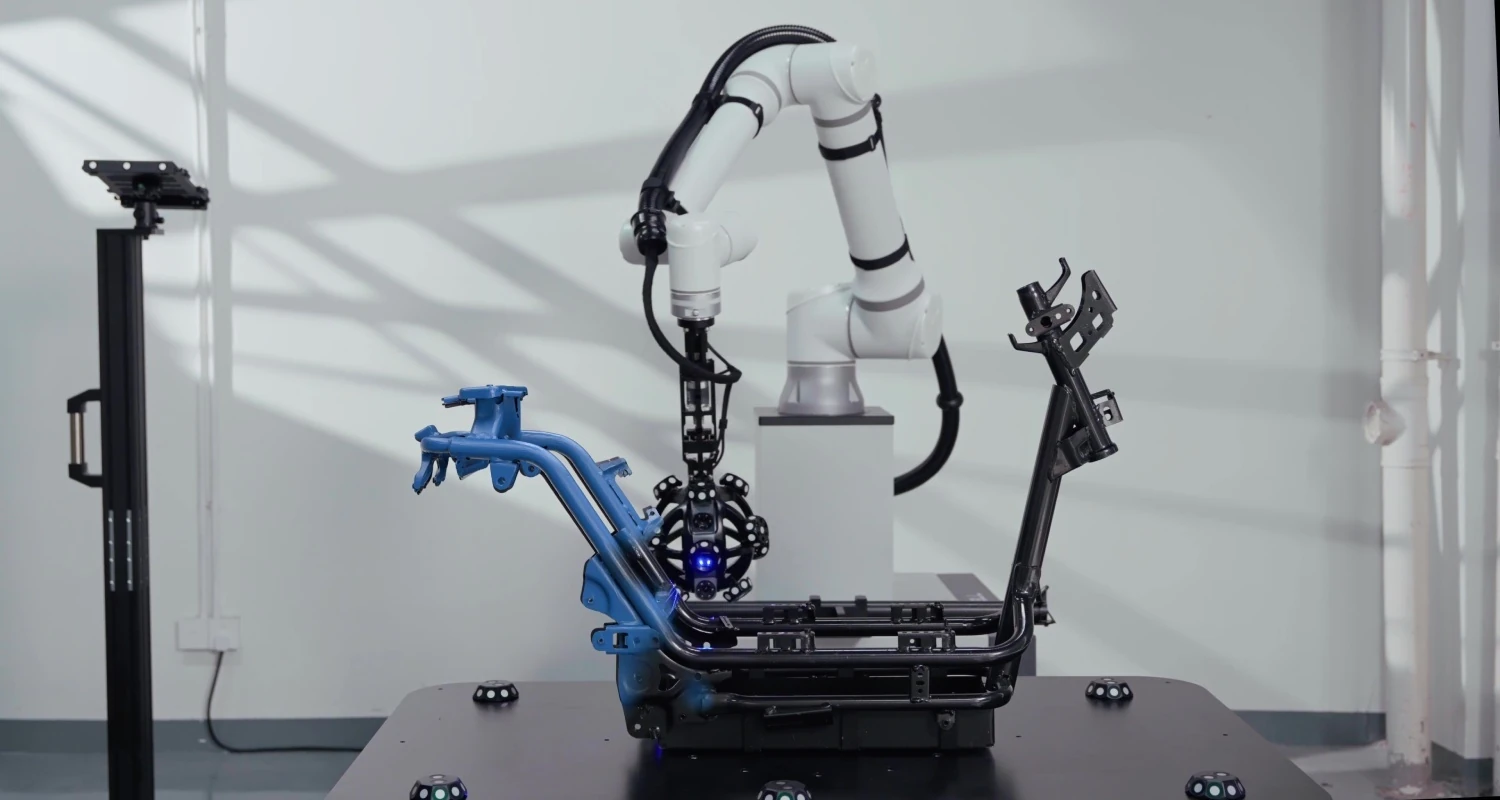

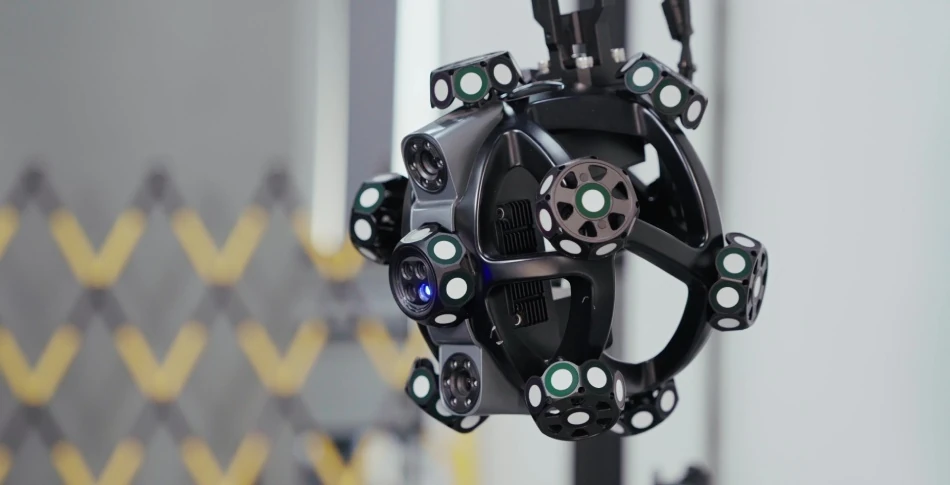

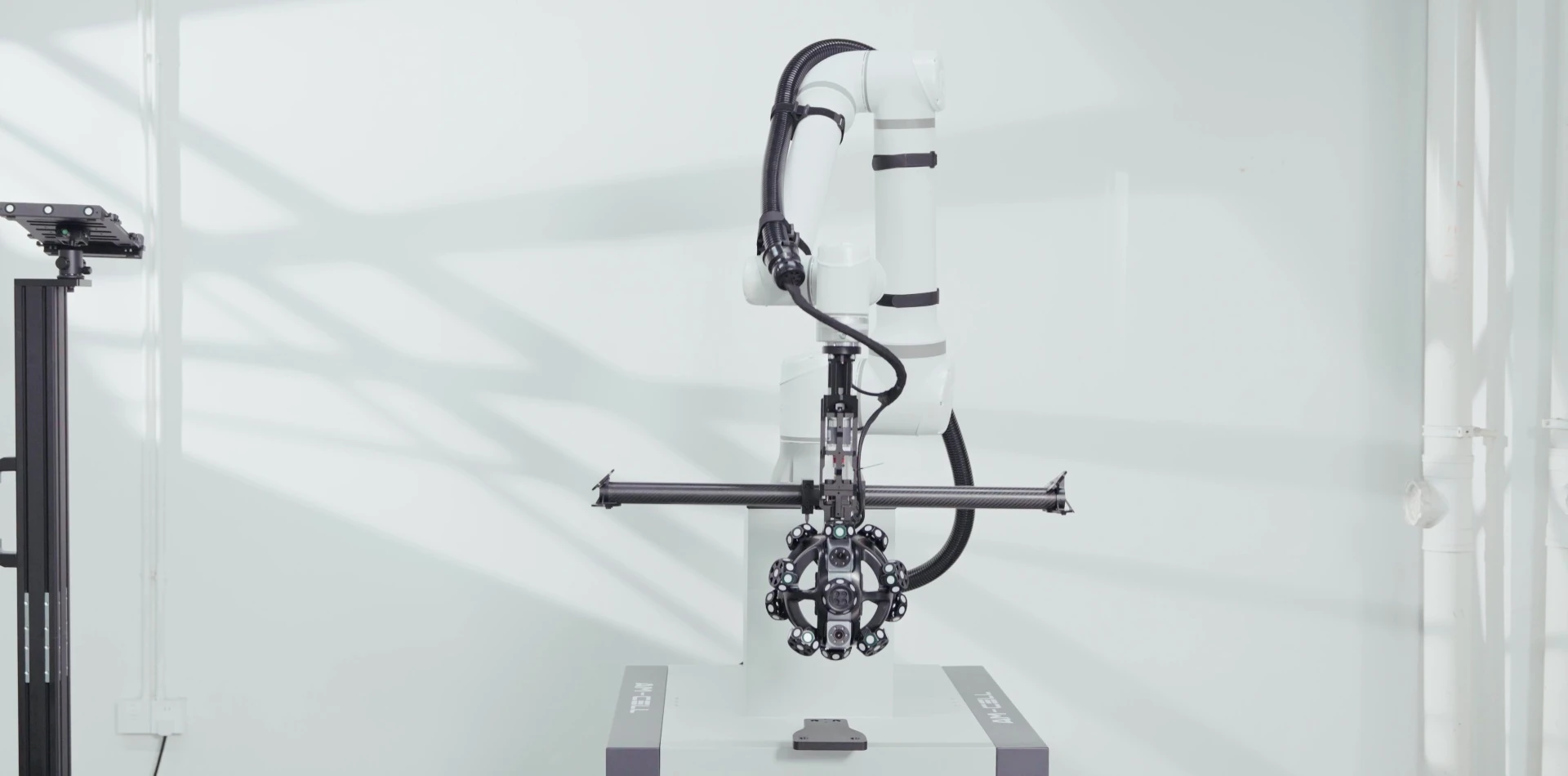

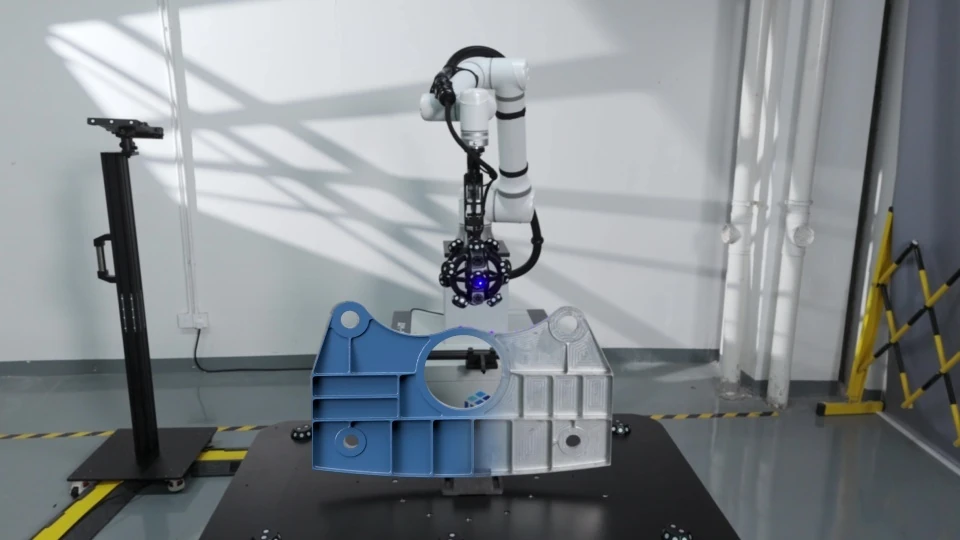

The system in practice.
15 images · images by SCANOLOGY. Click to enlarge.
06 / SPECIFICATIONS
Manufacturer data.
Manufacturer table in the original English, with units, operating modes and conditions preserved.
| Type | AM-CELL C13X | AM-CELL C18X | |||
| Space Size | 4.0 m × 3.0 m | 5.0 m × 4.0 m | |||
| Robot Type | Cobot, reaching 1300 mm | Cobot, reaching 1800 mm | |||
| 3D Scanner Supported | Full series of SCANOLOGY’s Optical 3D Measurement System | ||||
| Communication Protocol | TCP/IP、USB 3.0、OPC UA | TCP/IP、USB 3.0、OPC UA | |||
| Expanded Communication | Socket, Modbus-TCP | Socket | |||
| Safety Mode | Active Emergency Stop + Safety with Force Feedback | ||||
| Input Voltage | AC ~ 220 V / 50–60 Hz | AC ~ 220 V / 50–60 Hz | |||
| Equipment Power | 1.5 kW | 3.0 kW | |||
| Turntable Type | TT200 | TT500 | TT800 | TT1100 | |||
| Payload | 200 kg | 500 kg | 800 kg | 1000 kg | |||
| Maximum Object Size | Ø ≤ 1200 mmH ≤ 1000 mm | Ø ≤ 1500 mmH ≤ 1200 mm | Ø ≤ 1800 mmH ≤ 1500 mm | Ø ≤ 2200 mmH ≤ 1800 mm | |||
| Turntable Power | 0.75 kW | 1.0 kW | 1.5 kW | 2.0 kW | |||
| Motor Type | Absolute Servo Motor | ||||||
Source: official SCANOLOGY product page. Accuracy, volumetric accuracy and resolution apply under the conditions stated by the manufacturer.
